A Crash Course in Game Design and Production
  Week 3 - Screen Design and User Interface Specification

Welcome back! This is the third installment in "A Crash Course in Game Design and Production. Like last time, this lesson is in two parts. In PART ONE, we'll discuss Screen Layout and User Interface issues. In PART TWO We'll write the third part of the Design Spec for our Course Project, the Screen Design and User Interface Specification.

  Part 2 - Course Project Screen Design and User Interface Specification

Ok here's each screen in our game and what it looks like and how it works, and what goes where:

I General Design and Layout

General Screen Layout


The [CodeName] Game Screen is divided into three separate information areas, the Game Window, FeedBack Window, and the Info Bar.

The Game WIndow is where all the action in [CodeName] takes place. It's dimensions are 233x182, with upper left corner at {0,9}.

The Feedback Window is where [CodeName] keeps the player updated on his current status in the game, as well as the scores of the top five players of all time. The Feedback Window is 87x182, with upper left corner at {233,8}

The InfoBar displays [CodeName]'s Copyright information, game controls, and LGP's e-mail and WWW address. The InfoBar is 320x9 with upper left corner at {0,191}

Everything that is displayed in [CodeName], apart from the initial "Loading, Please Wait" image is displayed in one of these three screen areas.

II General Interface Specification
All player interaction with [CodeName] is accomplished through one character keyboard commands. As soon as the player hits one of the following keys, [CodeName] responds appropriately:

Player Controls

Q - Quit. From anywhere in [CodeName], the player can quit his current game and return to the intro screen or exit to DOS with the Q key.


1 - Begin a One Player Game. This is an option from the Intro, GameOver, and EnterName screens.

2 - Begin a Two Player Game. This is an option from the Intro, GameOver and EnterName screens.

Esc - About [CodeName] - During a game, Esc brings up the About [CodeName] Screen.

Direction Arrows - During a game, the up, down, left, and right arrow keys control the players character as it moves throughout the maze.

Space - Stop. During a game, pressing the spacebar will cause the player character to stop moving.

Enter - Sugar Rush. During the game, pressing Enter causes the player character to be accellerated to twice its normal speed for a short limited time. Pressing Enter before the time limit is up returns the player to normal speed and reserves the time left for another use later.

Feedback Systems
The Feedback Window displays visual feedback of the player's current progress in the game. The Feedback Window is 87x182 with upper left corner at {233,9} and lower right corner at {319,190}, and is divided into 5 areas, called "Boxes"

LogoBox
This displays the animated [CodeName] logo. This serves two feedback purposes, first to let the player know what game he's playing, and second it is a visual indicator of the frame rate the game is running at. The Logo cycles through 10 animation frames. The rate the logo cycles is the frame rate. The Logo anim is 87x33 and is positioned at {233,9}

Player1Box
This displays the player information for player one. It's 87x38 with upper left corner at {233,41}. It contains Player 1 Label, Score, number of lives left and current level.
"Player 1" in white text positioned at {252,46}, centered in window
"Score:" in white text positioned at {242,53}
Points - 5-digit formatted text in yellow printed on a dark blue rectangle at {279,53}-{309,58}
Each life remaining is represented by an open-mouthed snacky sprite, positioned at {257,60}, {269,60}, and {281,60}
"Level:" in red text with 2-digit formatted level number drawn on a dark blue rectangle at {252,71}-{303,76}

Player2Box
This displays the player information for player two. It's 87x38 with upper left corner at {233,78}. It contains Player 1 Label, Score, number of lives left and current level.

"Player 2" in white text positioned at {252,83}, centered in window
"Score:" in white text positioned at {242,90}
Points - 5-digit formatted text in yellow printed on a dark blue rectangle at {279,90}-{309,94}
Each life remaining is represented by an open-mouthed snacky sprite, positioned at {257,97}, {269,97}, and {281,97}
"Level:" in red text with 2-digit formatted level number drawn on a dark blue rectangle at {252,108}-{303,113}

Hi-ScoreBox
This displays the all-time High Score in [CodeName]. It's 87x23 with upper left corner at {233,115} It contains 2 lines of text. The player can compare his score to see how he's doing. When a player's score exceeds the All-Time High Score, his score is displayed in the Hi-ScoreBox and is updated every time he scores points for the rest of the game.

"Hi-Score" in Yellow text, centered in box at {252,120}
Points: - white text 5-digit formatted number on a dark blue rectangle at {261,128}-{289-132}

HSListBox
This displays the top 6 players and their scores for [CodeName]. When the player beats one of these scores he enters his name and it is added to the list. The last name on the list is discarded to make room in the list for the player's glory. The list is printed at {245,150}, with each line of text in a different color from yellow to red.

"Hi-Scores" - yellow text centered in box, at {249,140}
6 scores - Each score in list is different color ramping from the top score in yellow to bottom score in red. Point values are 5-didgit formatted and names are 8-letter truncated
Score 1 - Name: {237,148} Score: {288,148}
Score 2 - Name: {237,155} Score: {288,155}
Score 3 - Name: {237,162} Score: {288,162}
Score 4 - Name: {237,169} Score: {288,169}
Score 5 - Name: {237,176} Score: {288,176}
Score 6 - Name: {237,183} Score: {288,183}

Game Messages
[CodeName] has special animated Game messages alert the player to changes in Status. These are displayed in the Game Window:

Get Ready
"Get Ready!" is displayed at the beginning of the game

ChangePlayer
"Player 1" or "Player 2" is displayed for a few seconds when it's time to switch players.

GameOver
"Game Over" is displayed when the player has completed his game.

Game Cues
There is only one game cue animation in [CodeName].

FireyDeath
When a ghost catches the player, [CodeName] lets him know that it is counterproductive towards achieving his game goal by killing the player in a firey death animation.
Auditory Feedback
[CodeName] lets the player know how he's doing through alert and feedback SFX. These sounds are:

GetReady Music - This music plays with the Get Ready! animation to signal the beginning of the game

Death Music - This plays when the player dies, signalling he sucks.

WakaWaka - Whenever the player eats a dot he gets a "wakawaka" sound.

Siren - During the game a siren sound plays, as the player progresses in the level the pitch of the siren gets higher and higher.

Energizer - When the player eats an energizer, the siren is replaced by another looping sound that plays throughout the duration of the energizer's affect.

Ghosteaten - When the player eats a ghost, a special sound plays while the ghost's point value is displayed.

LevelCompleted - This plays when the player begins a new level.

GameOver - This plays after the player's last snacky is killed. Depending on the player's score he will get different SFX, from "You Suck, try again" to "High Score!"

III Game Screen Descriptions
The Game Screens in [CodeName] are

Loading
This is displayed as the game loads and processes its data files. It displays the Game title, some controls and "Loading Please Wait" message.

Intro/Attention Getter
This is the animated game intro sequence. All the game windows are initialized and the Title anim plays and each character is introduced. Title theme music plays, and it waits for the player to start a new game.

GetReady
This is just before the game actually starts. It displays the "Get Ready!" message and plays the Red Alert SFX.

Game
The game is actually played.

GameOver
The "GameOver" message is displayed over the ghosts that killed the player.

HighScore
Enter Your Name" screen is displayed in the Game Window

About
bout [CodeName] information is displayed in the Game WIndow in Multi-colored text.

OrderMe
This is a text ordering information screen that is displayed when the player exits to DOS.

IV Screen Layout Specification


Loading Screen

Loading Screen
This screen appears when the program is first started up, to let the player know that the game is loading. The loading process takes a few seconds.

Layout
When the [CodeName] starts, the graphics mode is switched to vga 320x200, the screen is cleared to black and the 168x110 loading image is displayed at {76,45}. There is no player interaction with this screen, although it displays all the game controls that the player will need for the game when it starts.
This screen is cleared when all data is loaded. Game palette is set from this image.

Contents:
Light Blue 1 pixel frame around it.
2 lines White text, centered at top:
"Lord Generic Productions"
"Presents"
Game logo in center flanked with 2 ghosts on each side
Left: Blinky and Pinky
Right: Inky and Clyde
2 lines Yellow Text Centered:
"Press 1 or 2 to Play"
"Press Q to Quit"
3 lines White Text, centered on line
"Move: Arrow Keys Stop: Space"
"Sugar Rush: Enter"
"About this game: Esc"
One line Large yellow text:
Loading: Please Wait"


Intro Screen - Attention Getter



Intro Screen- Attention Getter
This is the animated title sequence for [CodeName]. The color cycling logo animates as each character is introduced. The Intro Theme music plays during this sequence

Layout
Game window cleared to black.
2 lines white text centered in window:
"Lord Generic Productions" at {47,32}
"Presents" at {95,40}

10 frame Animated Logo at {73,52} in center of window
Each Ghost is introduced and animates on screen from of alternating left and right edges of the game window toward the logo and stopping at specified coordinates:
Blinky from left to position {57,56}
Inky from right to position {163,56}
Pinky from left to position {57,71}
Clyde from right to position 163,71}

2 lines white text, centered
"Starring:" at {92,93}
Each character name is displayed on a black background rectangle poly (to erase previous name) at {98,99}-{138,105}

Last character to appear is snacky, coming onscreen from left of game window and stopping at {111,108}

Beneath animated section is the menu box centered in the lower third of game window. It contains the player choices and options.

Box background:
Dark Blue Solid rectangle Poly {45,133}-{111,108}
Light blue frame {46,134}-{189,166}
Light Blue frame {46,142}-{189,158}
Light Blue Line {46,150}-{189,150}

7 Lines White Text
"Play Game" at {50,136} "1 or 2" at {153,136}
"Game Options" at {50,144} "Space" at {157,144}
"About This Game" at {50,152} "Esc" at {163,152}
"Quit" at {50,160} "Q" at {169,160}

Player Interaction: If the player presses 1 or 2 a new game is started. If the player presses Q the game quits via the last 3 screens of the About This Game screen information. If the player presses the Space bar, the Game options screen will appear, where the player can adjust difficulty level and sound levels for the game.

If the player does nothing for 20 seconds, The Game Demo runs for a few seconds and then it returns to this screen. If the player continues to do nothing, the About This Game screen appears and the player has the option of cylcling through the about information. After the last page of infomation, [CodeName] returns to this Intro Screen. Left unattended, [CodeName] will cycle between the Intro and Demo and About This Game screens indefinately.


Get Ready! Screen

Get Ready! Screen
When the player starts a new game, the Game Window is cleared and the starting maze is drawn, and the Feedback window is set up. The ghosts appear in the Penalty Box, the player's character is placed in his starting position in the maze. the animated "Get Ready!" message appears, and the Level Begin Music plays.

Layout
The 140x18 10 frame animated "Get Ready!" message is placed at {50,50} and cycles through the animation over and over until the music is finished playing, then the game starts.

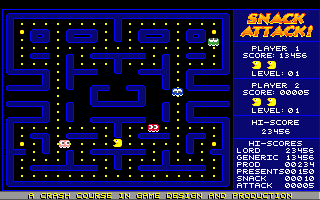

Game Screen

Game Screen
The game begins, the ghosts leave the penalty box and go to their respective energizers before pursuing the player as he moves around the maze attempting to eat all the dots, and lure the ghosts into a trap to kill as many of them as he can without getting killed by them.

Layout
Everything happens in the Game Window. The maze is drawn, and it's layout determines where ghosts and player begin the game, and where they can or can't go. The maze is created using tiles and is defined as a 19x22 grid of ascii characters representing the tiles. The number and placement of ghosts and energizers, as well as player's starting position are determined by the maze definitions. There can be open spaces where the characters can move off the left/right or top/bottom of the game window and reappear on the opposite side, and there are "doors" that only the ghosts can go through, and some that only snacky can go through.

Scores, level, and number of lives left are updated in the Feedback Window.

When player eats the last dot in the maze, the maze flashes between normal and black and white 3 times, the "level Completed" sound plays, and he moves to the next maze. The new maze is drawn, player and ghosts are positioned, the Get Ready! Animation plays, and the game continues until the player loses his last life.

Player Interaction
The player uses the direction arrows to move snacky around the maze, Space to stop, and Enter to go into Sugar Rush mode as described above

All player keys are active at this time, except for the 1 and 2 keys which are only used to begin a game. As long as the player has lives left the game continues. As soon as he loses his last life, the GameOver Screen takes over.


GameOver Screen


GameOver Screen
The game ends in fire. After the player loses his last life, the Game Window clears to empty maze, then the animated "GAME OVER" message appears, with the ghosts wandering the maze at warp speed. The "You Suck! Try Again" SFX plays, then the player has the option of playing again. If the player has not made the high-scores list, the animation will play for 5 seconds and then return to the attention getter, unless the player hits 1 or 2 to play again.

Layout
The 162x19 10 frame GAME OVER image is placed at {36,50} and the ghosts keep moving as they were in the game only twice as fast while the message is animating for 5 seconds.

If the player has made the high-scores list, the HighScore screen takes over. If not, the 164x19 "play again Box" graphic is displayed in the lower portion of the game window, centered, at {36,159}

The Play Again Box is 164x19, dark blue rectangular polygon at {36,159} with light blue frame and 2 lines of centered white text:
"Press 1 or 2 to Play Again"
"Press Q To Quit"

The game waits for player's input and either starts a new game or quits via the About This Game screen.


HighScore Screen

HighScore Screen
This is where the player enters his name and is added to the high scores list.

Layout
This is drawn on top of the last maze played.
Dark Blue Rectabgular Poly 166x130 at {35,35}-{200,164}
Light blue frame at {36,36}-{199,163}
Light blue frame at {36,54}-{199,145}

Yellow Text:
"You've made the" at {74,39} centered in window
"High-Score List" at {71,47} centered in window
"Enter Your name:" at {43,62}
5-digit formatted score at {43,73}
Input Name 8 letter truncated at {80,73}

Player Interaction
The player then enters up to 8 letters of his name and when he presses [ENTER] his score is added to the High Scores list, which is printed in the HSListBox of the Feedback Window.

After the scores are updated, The Play Again Box (above) is overlayed at {36,145} The game waits for player's input and either starts a new game or quits via the About This Game screen.

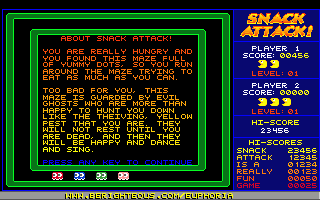

About [CodeName] Screen

About This Game Screen
This displays game information, like the keyboard controls, how to play, credits, and ordering information. There are six 20 line pages of information to display.

Layout
The Game Window is cleared and the About This Game maze is drawn and the ghosts and animated snacky are initialized. The About text is centered and printed in the Game Window. The text color changes every other line, with the top line yellow, and the bottom line red. The last line of every page is white and says "Press Any Key to Continue:" While the player is reading this, the ghosts chase snacky around the border

Each page gives different information:

Page 1 Lists the game controls and displays the copyright information for [CodeName]
Page 2 Tells how to play, the object of the game, etc..
Page 3 Warns players about the mines
Page 4 Gives ordering information, where to send the money, etc.
Page 5 Shows the game credits
Page 6 Advertises about Euphoria and the Crash Course

If the player hits the Esc key during a game, he will be able to see all six pages of about information. If the player chooses to quit to Dos, only the last 3 pages are displayed, as he no longer needs to know how to play the game, just where to send his money.

Player Interaction.
The player can advance to the next page of information by pressing any key other than Q. When all pages have been read, the game goes back to whatever screen called About This Game. If the player hits Q on any screen, About This Game immediately exits, bypassing any other screens.

OrderMe! Screen
When the player exits to Dos, I display a text file thanking the player for playing.

Layout
The screen mode switches back to 80 column text mode, the screen is cleared and order2.txt is printed on the screen

Ok, now you have the screen design and user interface specification for our course project. Next week we'll pick it up from here and talk about computer graphics. See ya next time!

End of Week 3 - Screen Design and User Interface Specification
Part 2 - Screen Design and User Interface Specification

If you have any questions for group discussion or have any other questions, comments or suggestions, email them to me to Pastor@BeRighteous
